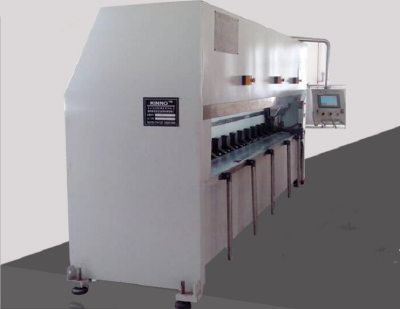

Detailed description:
1, the machine tool adopts high strength steel plate welding, heat treatment, heat treatment, eliminate welding stress, high strength, good stability.
2, the processing of the workpiece from the front end into, easy to operate, fast, high efficiency.

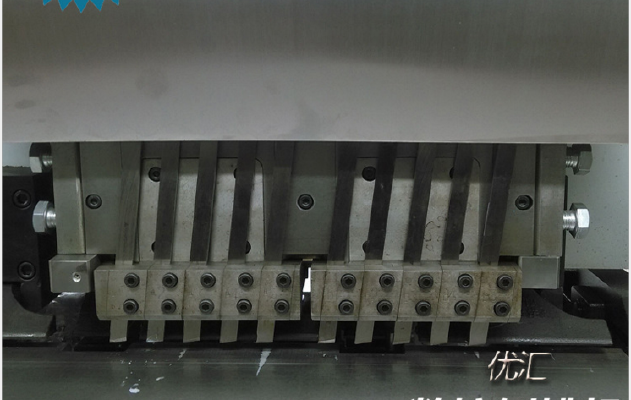

3, the computer controls the hydraulic clamping, the hydraulic pressure clamp, the clamp is stable, the depth is fast, the loss is small.
Overall, 4 working face heat treatment, precision grinding, good flatness, high hardness, there are 16 independent regulation, to ensure the cutting precision can be controlled at 0.02m.
5, the mobile turret servo drive, torque, acceleration and deceleration, rapid positioning, accurate feed.
6, using a multi threaded spindle pitch ball screw drive, strong rigidity, small resistance, greatly improve the efficiency and save energy.
7, the plane slot position using servo CNC positioning, double wire rod synchronous transmission, accurate positioning, good parallelism.
8, after the machine tool positioning platform through pipe connection, ensure the smooth surface, reduce the surface deformation caused by error.
Two: the main technical parameters
1, the maximum processing capacity: thickness * width * length =6*1300*3200mm
2, the minimum thickness of the workpiece: 0.5mm
3, a slot to the plate with the minimum edge moment: 9mm
4. The minimum electric precision of the spindle moves: the minimum electric precision of the 1mm slot: 0.01mm
5, cutting depth of the minimum electrical precision: 0.01
6, the main axis of mobile machinery precision: soil 1mm
7, groove positioning mechanical precision: 1mm O.
8, cutting depth of mechanical precision: 0.02 mm
9, the weight of the machine tool: 8000kg and 100kg
10, size: long, wide, high =4600*2200*1900mm
Three: CNC system and the main parts of the configuration
1, CNC system: Japan's MITSUBISHI three axis CNC system.
2, the operation interface of Japan MITSUBISHI lO inch 256 color touch screen, full Chinese interface.
3, servo motor: Japan's 3KW servo system. Japan's LKW servo set. Japan's 0.4KW servo set.
4, Taiwan: Chuan-Feng three-phase motor pump motor.
5, oil pump: Taiwan Yi San
6, hydraulic valve - Taiwan Yi San
7, close to the switch: Taiwan Yangming
8, ball screw: Taiwan TBI
9, slide: Taiwan ABBA.
10, bearing: Japan NSK the United States UBC
11, tool: ASSAB17 (1-100)
